Main Features |
The utility model has the advantages of simple structure, safe and reliable, long service life, and is suitable for measuring natural gas and coal-bed gas in single well. | ||||||||||
| It is convenient to replace the hole plate and adjust the measuring range in a wide range to meet the changing needs of each stage of the production capacity of a single well. | |||||||||||
| No need for real flow calibration, high precision, convenient mass production. | |||||||||||
| High and low temperature resistance, high pressure resistance, can measure gas, liquid, steam, wide range of application. | |||||||||||
| At the same time display the cumulative flow, instantaneous flow, pressure, temperature. | |||||||||||
| Output 4 channels (4~20) mA standard current signal and RS485 standard communication interface. | |||||||||||
| Throttle parts are optional: wedge, hole plate, balance hole plate, Venturi, Weiba, Anuiba, etc | |||||||||||
| Main Parameters | Nominal diameter | DN20～DN1000 | Nominal pressure | 0MPa～32MPa | |||||||
| Medium temperature | -50℃～700℃ | Accuracy | 0.5%F.S、1%F.S | ||||||||
| Range ratio | 4:1 | Straight pipe | Front 10D Back 5D | ||||||||
| Power supply | 24V DC | Connection | Pipe type, clamp type | ||||||||
| Environmental temperature | -30℃～70℃ | Output | RS485 + 4～20mA | ||||||||

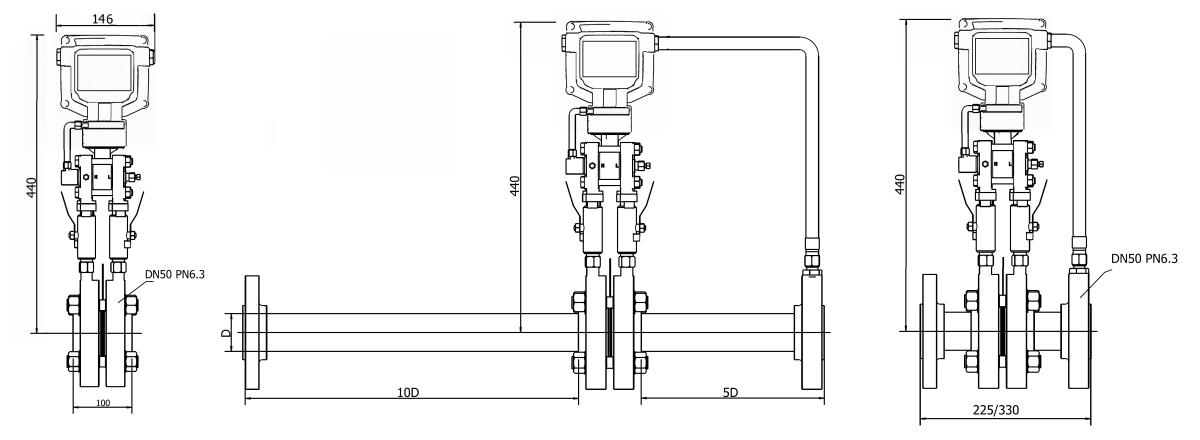

| Installation: | |||||||||||
| Selection: | |||||||||||
| ACF-1 | Code | Throttling device | |||||||||
| KB | Orifice plate | ||||||||||
| PHKB | Balance orifice plate | ||||||||||
| XX | Wedge-shape | ||||||||||
| WQL | Venturi | ||||||||||
| WLB | Veracalc | ||||||||||
| ANB | Annubar | ||||||||||
| Code | Output signal | ||||||||||
| K | RS485/Current/Pulse | ||||||||||
| Code | Accuracy | ||||||||||
| E | 0.5 | ||||||||||
| F | 1 | ||||||||||
| I | 1.5 | ||||||||||
| Y | Special | ||||||||||
| Code | Nominal diameter | ||||||||||
| DN | DN20～DN200 | ||||||||||
| Y | Special | ||||||||||
| Code | Pressure rating | ||||||||||
| PN | 0～32MPa | ||||||||||
| Y | Special | ||||||||||
| Code | Measuring medium | ||||||||||
| G | Gas | ||||||||||
| L | Liquid | ||||||||||
1. Specializing in the field of measurement for 16 years
2. Cooperated with a number of top 500 energy companies
3. About ANCN:
*R&D and production building under construction
*Production system area of 4000 square meters
*Marketing system area of 600 square meters
*R&D system area of 2000 square meters
4. TOP10 pressure sensor brands in China
5. 3A credit enterprise Honesty and Reliability
6. National "Specialized in special new" little giant
7. Annual sales reach 300,000 units Products sold worldwide
If the product shape and performance parameters have special requirements, the company provides customization.
